SOC-410 Series

​

The SOC-410 Series Reflectometers & Emissometers by Surface optics are portable contact measurement devices designed to take precise, accurate measurements. Made with an ergonomic power-drill design, the SOC-410 Series lets you easily take measurements in-the-field or around the lab — no cords or external batteries necessary. The world’s biggest defense, aerospace, and energy companies rely on SOC-410 data.

Emissometers

Reflectometers

​

410-Solar

Total reflectance at seven sub-bands in the
300-2500nm spectral regions. Total, diffuse,
and specular reflectance is reported for the data
at 20 degrees incidence. ASTM E903 certified.

​

410-Vis

Measures total reflectance at four sub-bands
in the 400 – 1100 nm spectral range.

​

410-DHR

Measures the optical constants of materials
for six spectral regions spanning SWIR, NIR,
MWIR, LWIR at near normal 20° and near
grazing 60° incidence angles.

​

410-Vis-iR (Reflectometer + Emissometer)

Two measurements heads, the ET100 and 410-Solar, to obtain the emisivity and solar reflectance values that are necessary to determine Solar Reflectance Index.

Emissometers

​

ET100

Measures directional reflectance at six bands in the thermal infrared spcetral region at two incidence angles, 20° and 60°. Based on those values, directional and total hemispherical emissivity is calculated.

​

ET10

Measures emissivity values in two of the most commonly used spectral regions,
3 to 5 and 8 to 12 microns.

CUSTOMERS

and many more

Modular Design

​

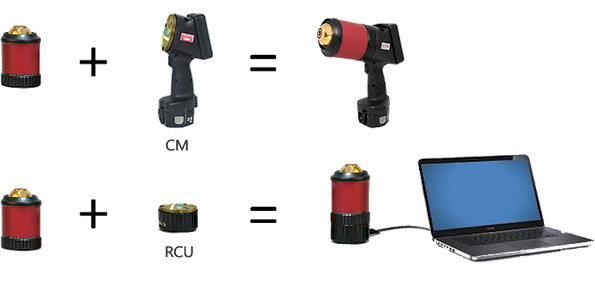

The SOC410 Series reflectometers have two main components: the optical measurement head and the command module (CM) or the remote control unit (RCU). The command module is battery powered, making your SOC410 Series instrument portable for field measurements and carrying on the manufacturing floor.  The RCU is suited for lab and desktop measurements where data is acquired by software and the unit is powered by an outlet.

  Ease of Use

Sampling Port

Telescopic sampling port neutralizes any small movements or vibrations during a measurement.

SD Card

Data is stored on an SD card, which makes it easily transferable to a PC for further processing.

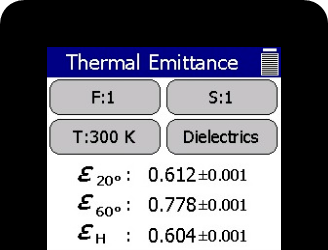

Touch Screen

Instrument is operated with a finger pressing buttons on the touch screen and/or by pressing the trigger.

Trigger

Simply press against sample and pull trigger.

Battery

Replacement or additional batteries can be bought in most hardware stores around the world which are selling power tools.
